0.85 inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface Product Description

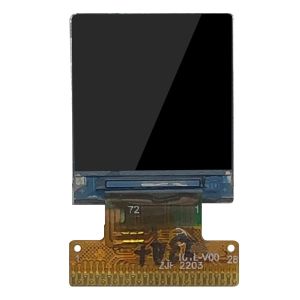

SAEF SF-TO085AS-8980A-N LCD display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit. SF-TO085AS-8980A-N is a TFT display with resolution of 0.85 inch which contains 128(RGB)X128 dots and it can display up to 65k colors.

SF-TO085AS-8980A-N model is having module dimension of 17.6 x 20.6 x 1.45 mm and active area size of 15.20x15.20 mm. This module supports MCU 8 bits Interface. SF-TO085AS-8980A-N is integrated with NV3023A controller on module, and its logic supply voltage ranges from 2.4V to 3.3V. The surface luminance of SF-TO085AS-8980A-N is 350 cd/m2 (Nits). If you would like to use it as portrait mode or adjust the luminance, please contact with us for more technical support.

SF-TO085AS-8980A-N the model has been widely used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.
